Mantis Bench/Jon Boat Mount

Detailed Description

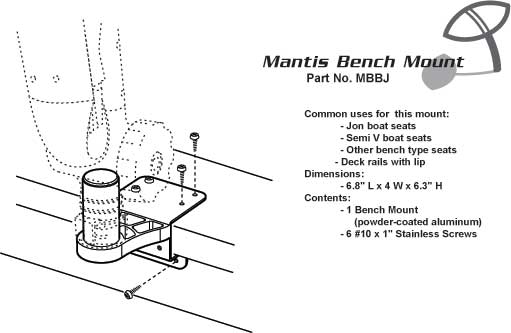

Mantis Bench/Jon Boat Mount #MBBJ

1. SELECT LOCATION and MARK AND DRILL HOLES
Using the mounting bracket as a template, pencil each of the 6 hole locations onto the mounting substrate. With a 1/8-inch diameter bit, drill holes in the marked positions.

2. INSTALL BRACKET
With a Phillips screwdriver, install the mounting bracket, using the 6 supplied screws. Be sure all screws are securely tightened.

3. INSTALL MANTIS
Now place the Mantis assembly onto the vertical post of the bracket, and lock in place. Refer to the manual supplied with Mantis for detailed instructions.

Pro Plus Mantis, 42-55" Height Adjustment, 40" L when closed #MTOPP $199.95

Shortie Plus Mantis, 31" Height, No Adjustment, 40" L when closed #MTSP $199.95

Junior Plus Mantis, 37"-44" Height Adjustment, 40" L when closed #MTJPP $199.95
