Mantis Bulkhead Mount

Detailed Description

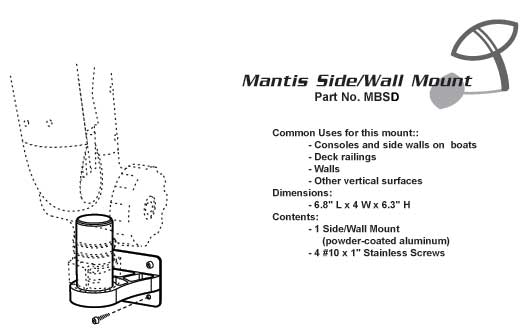

Mantis Side/Bulkhead Mount #MBSD

1. MARK AND DRILL HOLES
Using the mounting bracket as a template, pencil the hole locations onto the mounting substrate. With a 1/8 inch diameter bit, drill 4 holes in the marked positions.

2. INSTALL BRACKET
With a Phillips screwdriver, install the bracket, using the 4 supplied screws. Be sure all screws are securely tightened. If using Pro-Techt's optional back plate in conjunction with the deck mount, refer to the instructions that come with the back plate.

3. INSTALL MANTIS
Now place the Mantis assembly onto the vertical post of the bracket, and lock in place. Refer to the manual supplied with Mantis for detailed instructions.

Pro Plus Mantis, 42-55" Height Adjustment, 40" L when closed #MTOPP $199.95

Shortie Plus Mantis, 31" Height, No Adjustment, 40" L when closed #MTSP $199.95

Junior Plus Mantis, 37"-44" Height Adjustment, 40" L when closed #MTJPP $199.95
