Mantis Slider Seat Mount

Detailed Description

Mantis Slider Seat Mount #MBSLS

1. REMOVE SEAT FROM PEDESTAL
To remove seat, unscrew the screws from beneath the seat pedestal, and remove chair.

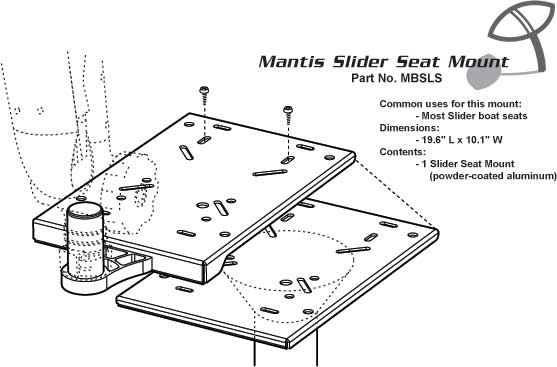

2. ATTACH MANTIS MOUNT TO EXISTING SLIDER PLATE
The Slider Seat Mount retrofits over most existing sliders. Additionally, the series of slotted holes are designed to fit existing seat pedestals. Position the new slider mount over the existing Slider. Test-fit the swivel seat to ensure that the vertical post clears the seat back and aligns with slider holes.

3. REINSTALL SLIDER SEAT
With the new mounting plate now sandwiched between the existing plate and the new plate, replace the seat and tighten screws securely. You can now place the Mantis assembly onto the vertical post of the bracket, and lock in place. Refer to the manual supplied with Mantis for detailed instructions.

Pro Plus Mantis, 42-55" Height Adjustment, 40" L when closed #MTOPP $199.95

Shortie Plus Mantis, 31" Height, No Adjustment, 40" L when closed #MTSP $199.95

Junior Plus Mantis, 37"-44" Height Adjustment, 40" L when closed #MTJPP $199.95
