Mantis Scooter Tube Mount

Detailed Description

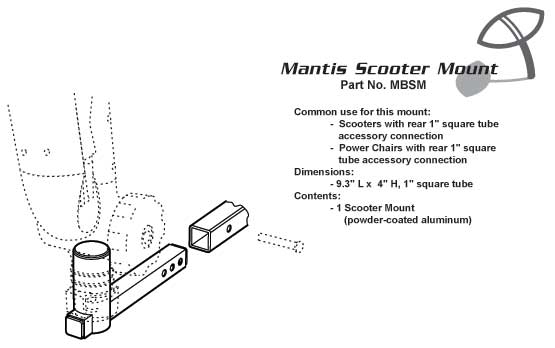

Mantis Scooter Tube Mount #MBSM

1. LOCATE MOUNTING SLOT ON SCOOTER
If your scooter does not have a mounting slot for accessories, check with your dealer. You will need one before Mantis can be installed.

2. INSTALL HITCH POST
Slide rectangular beam into mounting slot. (Leave enough clearance so that Mantis assembly will not interfere with seat back once it is installed.) Use pin(s) or tighten knob provided with your scooter's mounting slot to secure hitch in desired location.

3. INSTALL MANTIS
Now place the Mantis assembly onto the vertical post of the bracket, and lock in place with locking mechanism. Refer to the manual supplied with Mantis for detailed instructions.

Pro Plus Mantis, 42-55" Height Adjustment, 40" L when closed #MTOPP $199.95

Shortie Plus Mantis, 31" Height, No Adjustment, 40" L when closed #MTSP $199.95

Junior Plus Mantis, 37"-44" Height Adjustment, 40" L when closed #MTJPP $199.95
